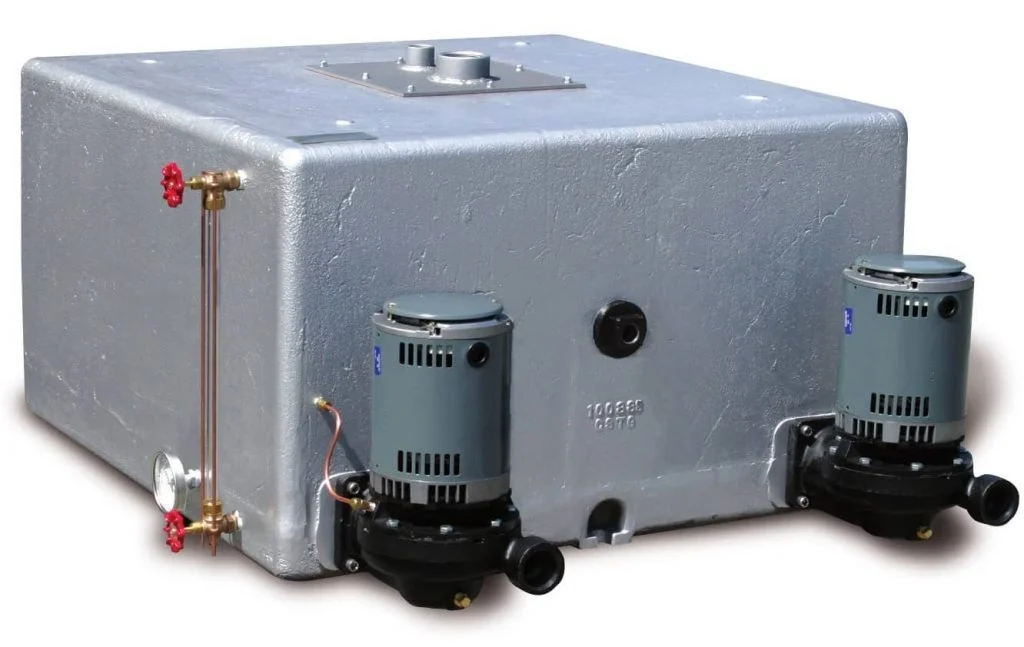

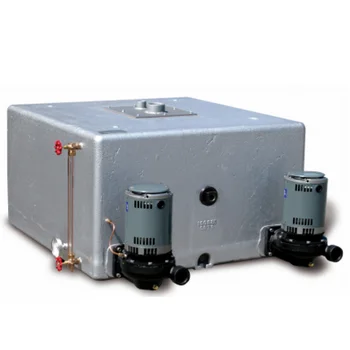

Boiler Feed Pumps 4200 Series Cast Iron Tank

• Heavy duty cast iron receivers
• Simplex or duplex construction
• Bronze fitted centrifugal pumps
• Energy efficient 3450 RPM motors
• Automatic venting
• “Sterl-Seal” ceramic pump seal (250°F)
• Heavy-duty make-up water valve
• Gauge glass
• Wide range of options and accessories

• Isolation valves
• Electric alternator for duplex units
• Thermometer
• Solenoid operated make-up water valve with reverse acting float switch
• Special motor construction, such as totally enclosed, washdown duty and
  explosion proof is available
• Magnetic starters with H-O-A selector switches
• 1750 RPM motors, larger pumping capacities and  higher discharge pressures – consult factory
• Custom sized and elevated tanks available
• Complete NEMA 12 Control Panel

Unit:
Completely factory assembled and tested. Simplex units have one receiver, one make-up water valve, and one vertical pump and motor assembly. Duplex units have 2 vertical pumps. All units are supplied with a gauge glass on the side of the receiver and a flat perforated brass strainer at the inlet to the pump.

Motors:
Heavy-duty, ballbearing, close-coupled pump motors with stainless steel shaft. 3450 RPM for greater efficiency and more economical operation.

Make-up Water Valve:
Mechanical, plug mounted valve with stainless steel float. Rated up to 45 psi inlet water pressure.(Pressure reducing valve is required)

Receiver:
Heavy-duty cast iron construction. All receivers of 36 gallon size and larger are supplied in duplex design, with one pump opening covered when a simplex design is specified.

Operation:
Boiler feed pump(s) are controlled by a water level controller mounted on the boiler. If condensate is lost or delayed in the system, it is automatically replaced in the receiver through the make-up water valve.

“SterlSeal” Pump Seal (A):
Features the ultimate in ceramic technology for exceptionally long life. Because the seal runs on the bronze impeller hub, the motor shaft is literally outside the pump. Consequently, the shaft is not exposed to corrosion by condensate. Rated for temperatures up to 250ºF.

Isolation Valve (B):
Optional on 4200 Series Boiler Feed Pumps. Allows removal of pump without draining the tank.
